Default LED footwell light question

If I wanted to install footwell LEDs that strictly came on when my dome light did, would I just need to splice into my dome light wiring? I'm thinking I can just wire them to the dome light and not have to run any wiring to the battery or install a separate switch. Am I thinking right here?

Thanks!
Reply With Quote
Sponsored links
  #2
Old 09-29-2013, 04:24 PM
ShawnC13's Avatar
ShawnC13 ShawnC13 is offline
Team Bully



Join Date: Dec 2011
Location: Victoria BC Canada
Age: 41
Posts: 26,743
Gender: Male
Vehicle: 2008 Dodge Ram 1500 QC TRX4
Trim Level: SXT
Color: Flame Red
Engine: 2003-2008 345ci (5.7L) Hemi V8 345hp 375lb/ft
Rep Power: 19
Rep:1722
ShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant future
Default

Yes that is all you should have to do. Many people splice into the dome light circuit that way they are only powered when the dome light is on
Reply With Quote
  #3
Old 09-29-2013, 04:36 PM
SoCal Ram's Avatar
SoCal Ram SoCal Ram is offline
Dodge Ram Forum Senior Member!

Join Date: Jan 2013
Location: SoCal
Posts: 176
Gender: Male
Vehicle: 2012 RAM 1500
Trim Level: Big Horn
Color: White
Engine: 2009-20?? 345ci (5.7L) Hemi V8 390hp 407lb/ft
Rep Power: 2
Rep:294
SoCal Ram is a jewel in the roughSoCal Ram is a jewel in the roughSoCal Ram is a jewel in the rough
Default

Yep, that's it. Had mine done and that's exactly how they were wired in.
Attached Images
File Type: jpg Driver-floor.jpg (18.1 KB, 121 views)
File Type: jpg Paaenger-floor.jpg (11.5 KB, 119 views)
File Type: jpg Passenger-floor.jpg (12.7 KB, 115 views)

Last edited by SoCal Ram; 09-29-2013 at 04:39 PM.
Reply With Quote
  #4
Old 09-29-2013, 05:37 PM
Asur Asur is offline
Dodge Ram Forum Senior Member!

Join Date: Mar 2012
Posts: 6,850
Gender: Male
Vehicle: .
Rep Power: 14
Rep:4371
Asur has a reputation beyond reputeAsur has a reputation beyond reputeAsur has a reputation beyond reputeAsur has a reputation beyond reputeAsur has a reputation beyond reputeAsur has a reputation beyond reputeAsur has a reputation beyond reputeAsur has a reputation beyond reputeAsur has a reputation beyond reputeAsur has a reputation beyond reputeAsur has a reputation beyond repute
Default

Check your left side dash, there is a cover the on the side dash you need to open your door to get it off, behind there you will find the Green connector for your doom and roof console lights, you can connect to there and then run your lights under the dash.

Last edited by Asur; 09-30-2013 at 08:55 AM.
Reply With Quote
  #5
Old 09-29-2013, 06:09 PM
Stump3r's Avatar
Stump3r Stump3r is offline
Dodge Ram Forum Senior Member!

Join Date: Feb 2011
Location: Morinville, Alberta
Age: 46
Posts: 12,851
Gender: Male
Vehicle: 2013 Ram 1500 Crew 4x4
Trim Level: Sport
Color: Black
Rep Power: 12
Rep:1266
Stump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud of
Default

Read through my bed lighting thread HERE.
I have instructions for tapping into the dome circuit in both the 11/12's and the 13's.
__________________


Big Red my old 2011 Sport

Enjoy big benefits with a subscription to RamforumZ, become a site supporter today!

Don't forget to upload pics of your Ram in the Gallery!

Great how to's and lets not forget the Rulez.


Reply With Quote
  #6
Old 09-29-2013, 10:14 PM
The Hemster's Avatar
The Hemster The Hemster is offline
Dodge Ram Forum Senior Member!

Join Date: Sep 2013
Location: Los Angeles
Age: 38
Posts: 77
Gender: Male
Vehicle: 2013 Dodge Ram Express
Trim Level: Express
Color: Mineral Gray Metallic
Engine: 2009-20?? 345ci (5.7L) Hemi V8 390hp 407lb/ft
Rep Power: 0
Rep:69
The Hemster will become famous soon enough
Default

Quote:
Originally Posted by Asur View Post
Check your right side dash, there is a cover the on the side dash you need to open your door to get it off, behind there you will find the Green connector for your doom and roof console lights, you can connect to there and then run your lights under the dash.
You say right side, but I saw someone with the panel off on the driver side next to the head light cluster. Also, is there a tutorial for getting the panel off?
Reply With Quote
  #7
Old 09-29-2013, 10:20 PM
Stump3r's Avatar
Stump3r Stump3r is offline
Dodge Ram Forum Senior Member!

Join Date: Feb 2011
Location: Morinville, Alberta
Age: 46
Posts: 12,851
Gender: Male
Vehicle: 2013 Ram 1500 Crew 4x4
Trim Level: Sport
Color: Black
Rep Power: 12
Rep:1266
Stump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud ofStump3r has much to be proud of
Default

To get this panel off you need a screw driver or flat blade prytool. Be careful as you can mark it very easily. Once you have the tool in place it doesn't take much effort and it pops right off.

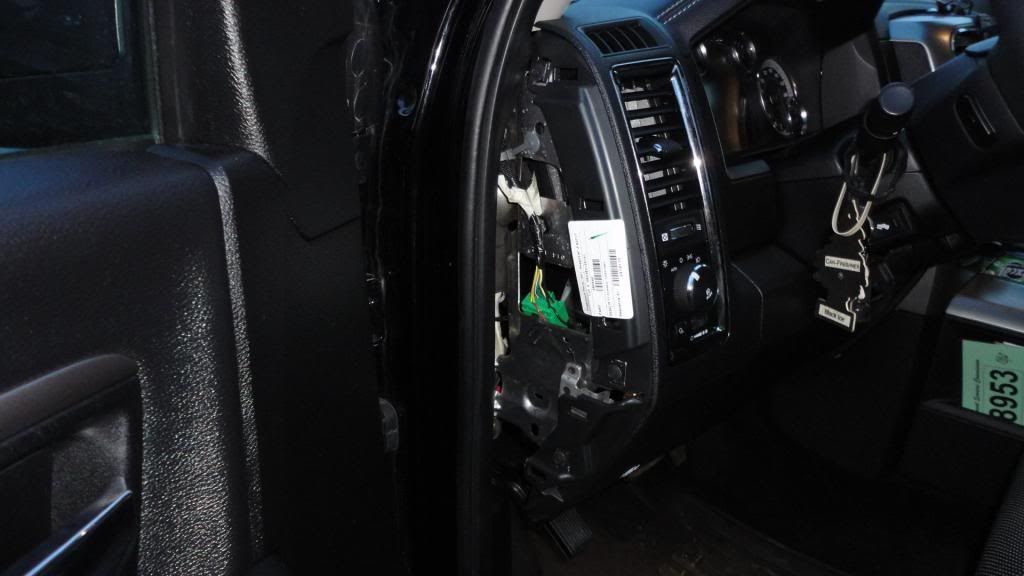

Your Express should look exactly like this...

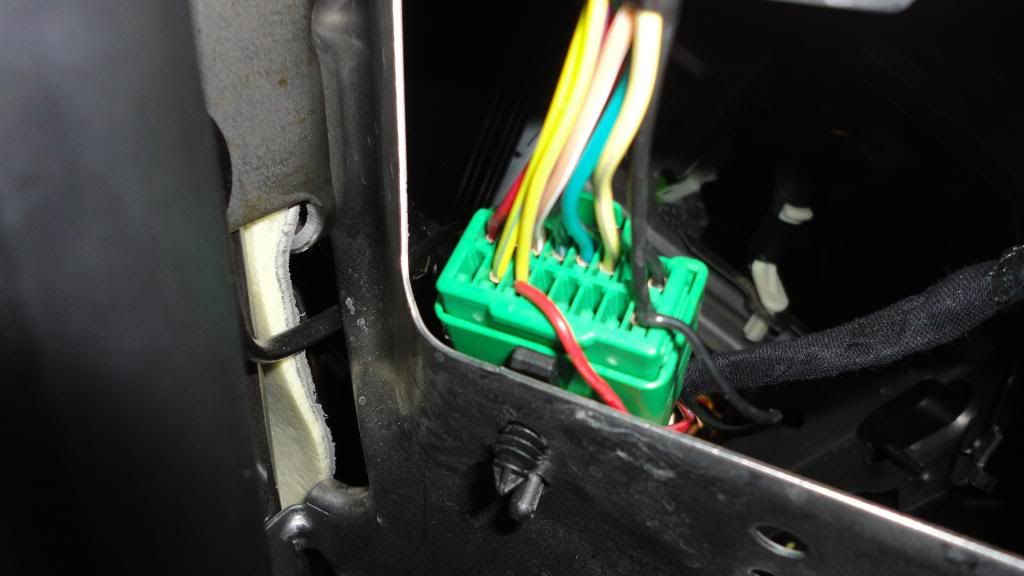

Yellow is power, black is ground. This is the dome circuit and all the dimmer functions etc. will work if you pull power from here.
